Move It-Holland Battery Chain Hoist Is An Ideal Tool For In The Areas Without Supply, Like Forest, Farm, Wildemess, Under-construction Buildings, Plumbing. Etc. Also Suitable For Safety And Rescuing Applications.

Features For Hoist :

1. Hooks : Alloy Steel Material By Die-casting Formation, Wide Opening With Safety Latch.

2. Housing Aluminum Alloy Shell, Light And Compact.

3. Motor : High-speed Brush Motor (series Wound ) With High Efficiency.

4. Quick Connector : Industrial 2-Pin Power Connector, Easy Connection And Storage For Control Switch.

5. Load Chain : Alloy Steel Load Chain (4.0mm, Grade 80 Standard) Provides A Higher Resistance Against Fatigue, Wear And Rust.

6.  Brake/Clutch : Friction Clutch Can Make The Motor Idle Running To Avoid Damage Under Overload And Over Tight Revolving.

7. Gears : High Efficiency Driving System Plus 3-stage Planetary Speed Reducing Gear And 2-stage Spur Speed Reducing Gear.

8. Chain Container : One - Piece HDPE Chain Container Provides Higher Resistance Tensile And Durability.

1. Battery Chain Hoist C/w Chain (4.0mm X 4mtr) X 1.

2. Top Hook Assembly X 1.

3. Bottom Hook Assemble X 1

4. HDPE Chain Container X 1

5. Trigger Switch Set X 1, Consisting Of :

  Trigger : Step Less Variable Speed.

  Reverse Switch : Left Forward Rotation Of Drum; Right; Rearward Rotation Of Drum.

  Control Cord : 3-meter-long Flexible PVC Cord.

  Quick Connector : Easy Plug In & Out.

  Battery Condition Indication : LED Display To Monitor Battery Consumption.

  Overload Warning Buzzer For Top Safety.

6. High-performance : Rechargeable Li-ion Battery (DC 24V 4.0 Ah) X 2 : Battery Performance : 20-25 Min. (continuously Use With Full Loading).

7. 220V/50Hz/1Phase Charger & Adaptor X1.

8. Operation Manual X 1

9. Color Box X 1

u  Corrosion-free, Stainless Steel Construction

u  Present 120 PSI Filter Regulator With Auto Drain

u  Adjustable Agitation Speed

u  Spring-loaded Door Closure With A 165 F Fusible Link

u  Flow-through Brush System For Touch Up Precision Cleaning

u  Heavy Duty Industrial Grade Pump. 80 Gallon Max. Fluid Level

u  250 Lb, Load Capacity

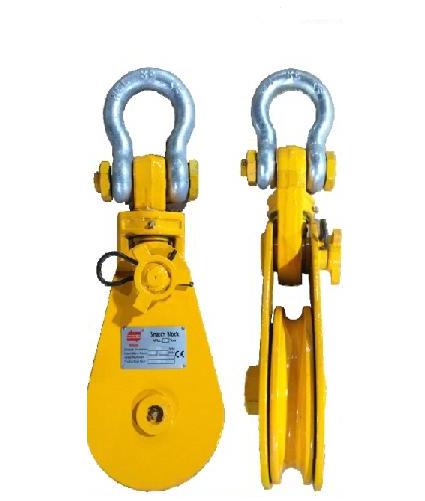

Features

1.          Solid All- Steel Construction, Heavy-duty Type Design.
2.          Easy Opening Mechanism Ensures A Fast Change Of Wire Rope While Block Is Suspended.
3.          Fully Machined Sheave.
4.           Sheave Has A Sealed Ball Bearing System, Fully Lubricated For Maintenance - Free Operation.
5.          Forged Steel Eye Is Designed To Avoid Twisting Of Unit During Operation
6.           Fitted With Grease Nipples For Ease Of Maintenance
7.          Special Design Of Side Plates Restricts Rope From Jamming
8.           Move It Snatch Blocks Are Operationally Tested To 2 Times Of The Working Load Limit (WLL) And Come With An Individual Test Certificate.
9.           Each Unit Is Supplied Complete With High Strength Safety Bow Shackle To European Standard.
10.           All Move It Snatch Blocks Have An Individual Serial Number Stamped On The Identification Plate.
11.           As Per The Latest Machinery Directive And EN Safety Standards.

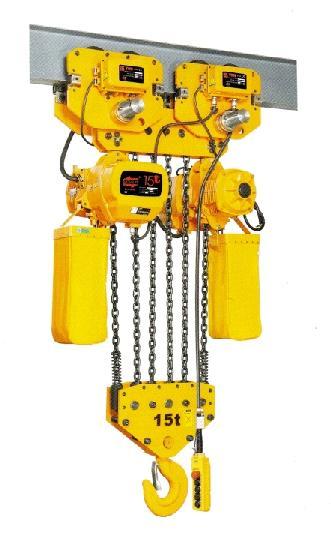

N HOIST WITH TROLLEY DIMENSIONS

LOWER HOOK

These Hand-operated Manual Trolleys Are Divided Into Two Types : Push Trolley And Geared Trolley And Geared Trolley.

Push Trolley Is Operated By Pushing The Load Lifted, Geared Trolley By Pulling The Hand Chain. Both Of These Items Are Running On The Bottom Of I-beam And Can Be Also Attached With Hoist To Become A Conveyor System.

 Features :

·         Compact Design And Easy Assembly.

·         Can Be Installed Or Removed At Any Point Along The Track, Also Additional Uses With Hoist Or Other Lifting Tools To Improve Efficiency And Labor-saving.

·         Adjustable To Suit H And I Beam Flanges With Various Widths.

·         Drop-forged Steel Wheels For Strong And Lower Wear.

·         Built-in Lugs Prevent Falling And Act As Bumper Guards.

·         Ball Surface Wheel Designed To Establish Centered Contract With Beams For Running Along Universal Tracks, And For Distributing Load Away From Beam Flanges To Reduce Flange Stress.

·         Used On Straight Or Curved Truck.

·         Fitting For Special Beam Widths Is Available

·         As Per Machinery Directive 2006/42/EC And Standard EN 13157+A1:2009

The ID Mounted Beveling Operation Utilizes An Expandable Mandrel Which Is Slid Into The Open End Of The Pipe.  Draw Nut Is Tightened, Which Expands The Mandrel Blocks Up A Ramp And Against The ID Surface For Positive Mounting, Self Centered And Squared To The Bore. As The Tool Bit Is Fed In To The Material From The End, Bevel Is Produced Which Confirms To The Angle Predetermined By The Angle Ground In To The Bit. Bits Are Available For Practically Any Material Or Beveling Required, And Bits Can Be Custom Made For Any Form Tooling Operation.

Features

u Cold Beveling

u Fast, Precision On-site Beveling

u Minimal Axial And Radical Clearance

u Light Weight And Compact Design

u Easy Set-up & Robust Operation

u Electric At Pneumatic Drive

ID MOUNT END PREP BEVEL

An Overseas Association Member Of Lifting Equipments Engineers Association UK & ISO 9001 Company

                                                                                                  EN 13414-1 WIRE STANDARD
