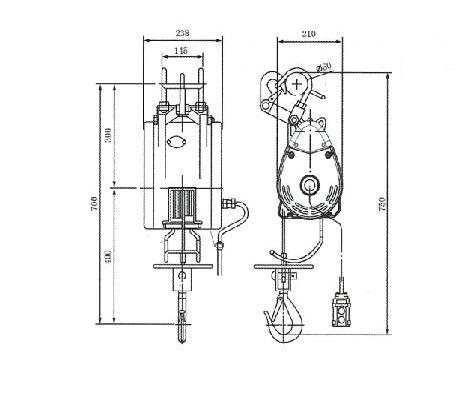

LOWER HOOK

PUSH BUTTON SWITCH A'SSY

TWO HOLE OF ELECTRIC WIRING BOX AVAILABLE

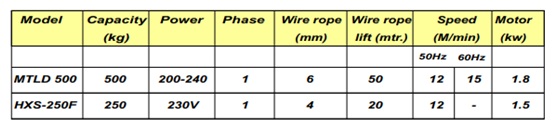

• Electric Mini Winch
• Load: 250 kg*20m lift
• Model: HXS - 250F
• Voltage: 230V
• Characteristics
• Load: 500 kg * 50m lift
• Model: MTLD 500
• Voltage: 220V
• The mini hoist is widely used for lifting operations in engineering, plant maintenance, piping installation, warehousing, and shipping. It is compact, lightweight, cost-effective, and works with single-phase power supply.
• Equipped with a high-efficiency industrial-grade brushless series-excited motor; supports 110V/220V with heat resistance up to 200°C. Ideal for long crane operations.
• Dual brake system: mechanical ratchet gear brake and short-circuit resistor controller. Oil-formula copper disc brake offers high friction, no need for adjustments, and immediate stopping in power outages — ensuring safety and durability.
• Automatic cable stop when reaching volume limit or during reverse operation.
• Direct control design minimizes wiring, improves maintenance, lowers failure rates, and enhances stability. Features a control switch with a separate power line and quick connector for portability.
• Equipped with imported steel wire rope with a 3-fold safety factor from leading manufacturers.
• Uses a high-efficiency bevel drive gear reducer; alloy steel gears are heat-treated with strength 3* rated capacity.
• Motor body and gearbox are die-cast in one piece. CNC-machined for high precision and low noise. Features automotive-grade powder coating for a strong, durable, and attractive finish. Compact and lightweight design.
